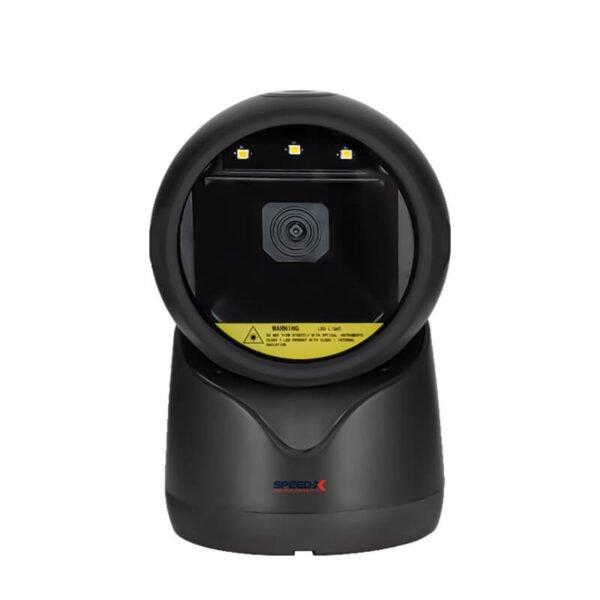

Speed-X 9500 2d Desktop Barcode Scanner

Description

Speed-X 9500 2d Desktop Barcode Scanner

The Speed-X 9500 2d Desktop Barcode Scanner is a High-performance Scanning Device Designed for Fast and Accurate Barcode Scanning. With Its Advanced 2d Imaging Technology, This Scanner Can Read Both 1d and 2d Barcodes Quickly and Efficiently. Its Compact Design Makes It Ideal for Desktop Use in Retail, Warehouse, and Healthcare Environments. The Speed-x 9500 is Easy to Set Up and Use, Making It a Versatile and Reliable Tool for Businesses Looking to Streamline Their Barcode Scanning Processes.

Technical Specifications:

Electrical Characteristics

• Interface Supported: RS-232/USB HID KEYBOARD/USB VCP
• Input Voltage: DC 5V±10%
• Current: Max:335
• Optical Characteristics:
• Image Sensor: CMOS Array Sensor
• Sensor Resolution: 640 X 480 Pixels
• Light Source: RED LED

Performance Characteristics

• Field Of View: 39H),29V)
• Min Resolution: 1D：0.127mm/5mil（PCS 0.9）| 2D：0.254mm/10mil（PCS 0.9）
• Min .PCS Value: 〉20% UPC/EAN 13（13mil）
• Language: Multiple Languages
• Decode Capability: 1D： Codabar， Code 39， Code 32, Interleaved 2 Of 5， NEC 2 Of 5， Code 93， Straight 2 Of 5(Industrial)， Standard 2 Of 5（IATA）， Matrix 2 Of 5， Code 11， Code 128， GS1-128， UPC-A， UPC-E， EAN-8， EAN-13， MSI Code， GS1 DataBar Expanded， GS1 DataBar Limited， GS1 DataBar Omnidirectional， Matrix 2 Of 5， Telepen | 2D： PDF417, QR Code， DataMatrix， Aztec， China Post（Hong Kong 2 Of 5）， Korea Post， Han Xin Code， MaxiCode， MicroPDF417， GS1 Composite Code， Codablock A， Codablock F

Physical Characteristics

• Dimensions: 100mm*94mm*152mm(L*W*H)
• Weight: 265g
• Indicator: Beeper, LED
• Environmental Characteristics
• Temperature: 0°∽50°C (Operation) | -10°∽60°C (Storage)
• Humidity: 20 – 85% (Operation) ) 20 – 95% (Storage)
• Shock Drop Test: 1.5m Drop Onto Concrete Surface

Decoding Depth Of Field

• Symbology: Code 39 | Resolution: 5mil | Nearest: 0cm | Farthest: 9cm
• Symbology: Code 39 | Resolution: 13mil | Nearest: 0cm | Farthest: 17.5cm
• Symbology: UPC-A | Resolution: 3.34mil | Nearest: 1cm | Farthest: 17cm
• Symbology: QR | Resolution: 20mil | Nearest: 0cm | Farthest: 13cm
• Symbology: QR | Resolution: 30mil | Nearest: 0cm | Farthest: 18cm
• Pay Code: （QR 3*3cm）| Resolution: – | Nearest: 1cm | Farthest: 32cm
• Pay Code（QR 2.3*2.3cm）| Resolution: – | Nearest: 0cm | Farthest: 28cm
